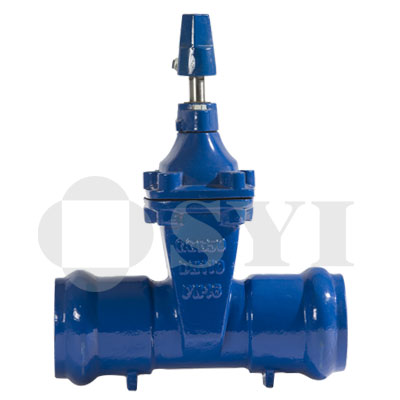

Resilient Seated Socket Gate Valve |
|
 |
|
| Technical Specifications:Â | |
| Face to face: BS, EN, DIN and SABS etc Working temperature: 0- 100℃ Working pressure: PN10/PN16 |
|

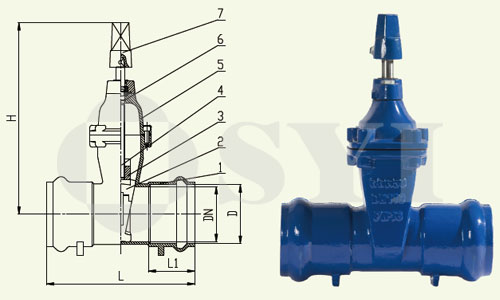

Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | GGG50 | 5 | Bonnet | GGG50 |
| 2 | Wedge | GGG50 With NBR/EPDM | 6 | O-ring | EPDM |
| 3 | Stem Nut | ZCuZn38Mn2Pb2 | 7 | Cap | GGG50 |
| 4 | Stem | Stainless Steel/2Cr13 |
Main Dimensions:
| DN MM | 50/63 | 65/75 | 80/90 | 100/110 | 150/160 | 200/225 | 250/250 | 300/315 |
| L | 258 | 278 | 288 | 362 | 415 | 458 | 508 | 510 |
| L1 | 123 | 123 | 123 | 127 | 130 | 133 | 158 | 158 |
| D | 63 | 75 | 90 | 110 | 160 | 200/225 | 250 | 315 |
| H | 250 | 286 | 335 | 371 | 468 | 572 | 658 | 758 |
