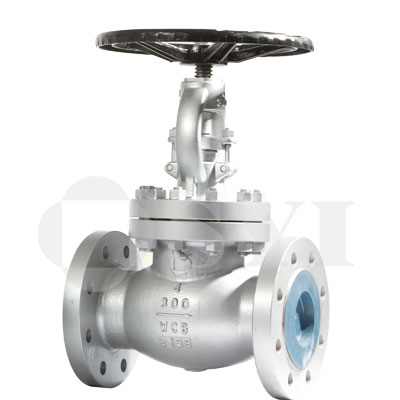

Cast Steel Globe Valve

Main Parts and Material:

Part Name Material
Body ASTM A216 WCB
Stem F6a F304 F316 Monel
Disc face 13Cr 13Cr STL 304 STL 316 STL Monel
Seat ring face 13Cr STL STL 304 STL 316 STL Monel



Part Name Material
Body ASTM A351 Cf3 ASTM A351 CF8M ASTM A351 CF3M
Stem F304L F316 F316L
Disc face 304L 304L STL 316 316L 316L 316 316L STL
Seat ring face 304L STL STL 316 STL 316L 316L STL STL

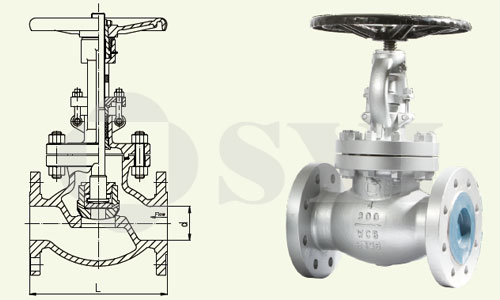

Main Dimensions:

Class DN NPS L MM D
MM
MM IN RF RTJ BW
150
PN20		  50 2 203 216 203 51
 65 21/2 216 229 216 64
 80 3 241 254 241 76
 100 4 292 305 292 102
 125 5 356 369 356 127
 150 6 406 419 406 152
 200 8 495 508 495 203
 250 10 622 635 622 254
 300 12 698 711 698 303
300
PN50		 50 2 267 283 267 51
 65 21/2 292 308 292 64
 80 3 318 333 318 76
 100 4 356 371 356 102
 125 5 400 416 400 127
 150 6 444 460 444 152
 200 8 559 575 559 203
 250 10 622 638 622 254
 300 12 711 727 711 305
 50 2 292 295 292 51
 65 21/2 330 333 330 64
 80 3 356 359 356 76
 100 4 432 435 432 102
 125 5 508 511 508 127
 150 6 559 562 559 152
 200 8 660 664 660 200
 50 2 368 371 368 51
 65 21/2 419 422 419 64
 80 3 381 384 381 76
 100 4 457 460 457 102
 125 5 559 562 559 127
 150 6 610 613 610 152
Category:

Description

Cast Steel Globe Valve
Cast-Steel-Globe-Valve
Technical Specifications:
Design and manufacture: API 600
Face to face: ASME B16.10
Flange ends: ASME B16.5		 Pressure/Temperature: ASME B16.34
Testing and checking: API 598



Main Parts and Material:

Part Name Material
Body ASTM A216 WCB
Stem F6a F304 F316 Monel
Disc face 13Cr 13Cr STL 304 STL 316 STL Monel
Seat ring face 13Cr STL STL 304 STL 316 STL Monel



Part Name Material
Body ASTM A351 Cf3 ASTM A351 CF8M ASTM A351 CF3M
Stem F304L F316 F316L
Disc face 304L 304L STL 316 316L 316L 316 316L STL
Seat ring face 304L STL STL 316 STL 316L 316L STL STL



Main Dimensions:

Class DN NPS L MM D
MM
MM IN RF RTJ BW
150
PN20		 50 2 203 216 203 51
65 21/2 216 229 216 64
80 3 241 254 241 76
100 4 292 305 292 102
125 5 356 369 356 127
150 6 406 419 406 152
200 8 495 508 495 203
250 10 622 635 622 254
300 12 698 711 698 303
300
PN50		 50 2 267 283 267 51
65 21/2 292 308 292 64
80 3 318 333 318 76
100 4 356 371 356 102
125 5 400 416 400 127
150 6 444 460 444 152
200 8 559 575 559 203
250 10 622 638 622 254
300 12 711 727 711 305
50 2 292 295 292 51
65 21/2 330 333 330 64
80 3 356 359 356 76
100 4 432 435 432 102
125 5 508 511 508 127
150 6 559 562 559 152
200 8 660 664 660 200
50 2 368 371 368 51
65 21/2 419 422 419 64
80 3 381 384 381 76
100 4 457 460 457 102
125 5 559 562 559 127
150 6 610 613 610 152
