Description

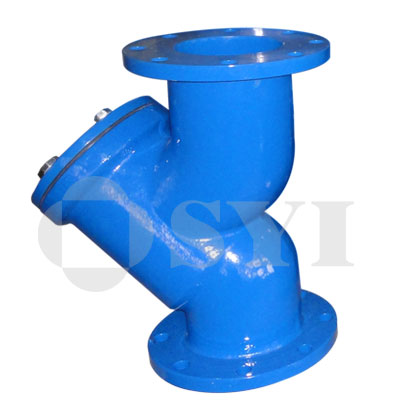

BS4504 Y-Strainer |
|
 |
|
| Technical Specifications: | |
| Design: BS4504 Face to face: BS2080 Flange drilling: BS4504 |
Working temperature: 0-100℃ Working pressure: PN10/PN16 |

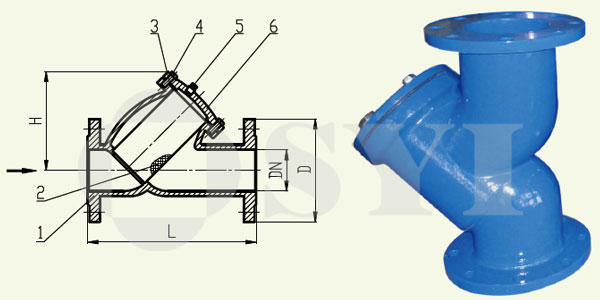

Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | Cast Iron/Ductile Iron | 4 | Bolt&Nut | Carbon Steel |
| 2 | Screen | Stainless Steel | 5 | Plug | Carbon Steel/Cast Iron/Ductile Iron |
| 3 | Gasket | NBR | 6 | Bonnet | Cast Iron/Ductile Iron |
Main Dimensions:
| DN MM | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L | 225 | 273 | 292 | 352 | 420 | 470 | 543 | 660 | 762 | |
| H | 136 | 158 | 174 | 205 | 247 | 284 | 346 | 421 | 492 | |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
