Universal Flanged Adaptors – Series 2012

Universal FlangedUniversal-Flanged-Adaptors---Series-2012-002

Adaptors – Series 2012



SYI is keeping on designing the series of coupling
products for pursuing the better performance and
easier operation.

New design and patterns could be developed based
on customers’requirement.

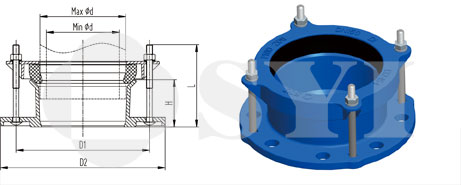

SYI Series No. DN Pipe O.D. range D2 H L
mm inch mm mm mm mm
SYI-FA-40-1 40 1.5” 44-60 146 75 140
SYI-FA-50-1 50 2” 48-64 162 75 140
SYI-FA-50-2 50 2” 56-74 162 75 140
SYI-FA-60 65-1 60/65 2.5” 56-74 182 75 140
SYI-FA-65-1 65 2.5” 72-88 182 75 140
SYI-FA-80-1 80 3” 85-105 198 80 140
SYI-FA-100-1 100 4” 85-105 218 80 140
SYI-FA-100-2 100 4” 98-118 218 80 140
SYI-FA-100-3 100 4” 108-128 218 80 140
SYI-FA-125-1 125 5” 108-128 248 85 160
SYI-FA-125-2 125 5” 123-145 248 85 160
SYI-FA-125-3 125 5” 132-154 248 85 160
SYI-FA-150-1 150 6” 132-154 282 85 160
SYI-FA-150-2 150 6” 157-181 282 85 160
SYI-FA-200-1 200 8” 192-212 338 85 160
SYI-FA-200-2 200 8” 215-235 338 85 160
SYI-FA-250-1 250 10” 222-246 398 85 160
SYI-FA-250-2 250 10” 246-268 398 85 160
SYI-FA-250-3 250 10” 267-289 398 85 160
SYI-FA-250-4 250 10” 276-298 400 85 160
SYI-FA-300-1 300 12” 308-332 453 90 160
SYI-FA-300-2 300 12” 322-346 455 90 160
SYI-FA-350-1 350 14” 344-368 518 90 160
SYI-FA-350-2 350 14” 367-391 518 90 160
SYI-FA-400-1 400 16” 392-416 578 90 160
SYI-FA-400-2 400 16” 417-439 578 90 160
SYI-FA-400-3 400 16” 436-458 578 90 160
SYI-FA-450-1 450 18” 436-458 638 90 160
SYI-FA-450-2 450 18” 474-496 638 90 160
SYI-FA-500-1 500 20” 490-512 712 90 160
SYI-FA-500-2 500 20” 524-546 712 90 160
SYI-FA-500-3 500 20” 540-562 712 90 160
SYI-FA-600-1 600 24” 597-617 838 100 160
SYI-FA-600-2 600 24” 619-639 838 100 160
SYI-FA-600-3 600 24” 628-650 838 100 160
Category:

Description

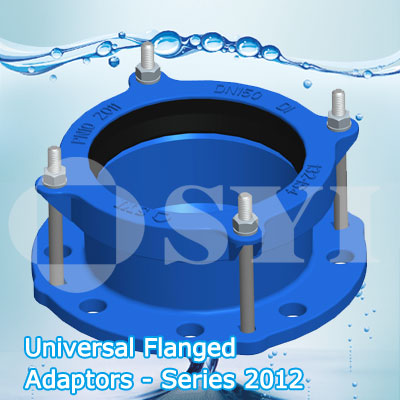

Universal Flanged Adaptors – Series 2012

SPECIFICATIONS
Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

D-BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Flange:
Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Allowed Angular Deflection:
3°
Joint Gap:
19mm
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
SYI Universal Flanged Adaptors, designed by experienced engineers in SYI in 2010 and applied the patent, with wide range tolerance on O.D. (up to 24mm), SYI Universal Flanged Adaptors are suitable for jointing the flanged joint the plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges.

The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.

The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.

SYI Universal Flanged Adaptors, with the further more reasonable sizes and ranges, can allow the pipes of main sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled.
Note: The accessories for SYI Universal Flanged Adaptors are usually supplied by assembled on the body.
