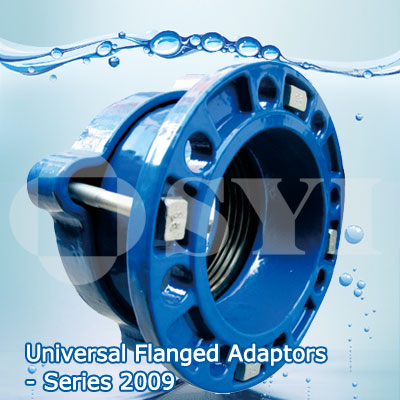

Universal Flanged Adaptors-Series 2009

Universal Flanged Adaptors-Series 2009Universal-Flanged-Adaptors-Series-2009-SYI-Pipeline



SYI is keeping on designing the series of coupling products for pursuing the better performance and easier operation.

New design and patterns could be developed based on customers’requirement.

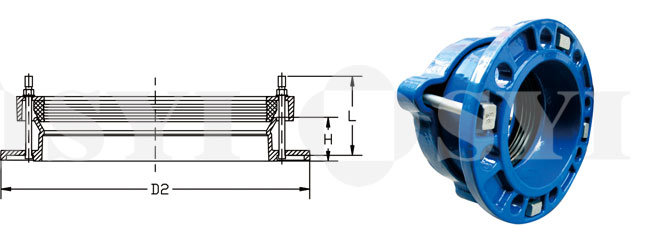

SYI Series No. DN Pipe O.D. range D2 H L
mm inch mm mm mm mm
FA2-80-1 80 3” 84-108 200 80 140
FA2-100-2 100 4” 106-130 220 80 140
FA2-125-1 125 5” 123-147 250 80 140
FA2-150-1 150 6” 138-162 285 82 140
FA2-200-2 200 8” 184-208 340 85 150
FA2-200-3 200 8” 206-230 340 85 152
FA2-200-4 200 8” 214-238 340 85 152
FA2-250-3 250 10” 264-270 400 85 152
FA2-250-4 250 10” 264-288 400 85 152
FA2-300-1 300 12” 282-306 455 90 162
FA2-300-2 300 12” 297-321 455 90 162
FA2-300-3 300 12” 312-336 455 90 162
FA2-350-2 350 14” 360-386 520 90 162
FA2-450-2 450 18” 447-475 640 90 162
FA2-450-3 450 18” 464-498 640 90 162
FA2-500-1 500 20” 492-516 715 100 172
FA2-500-2 500 20” 540-564 715 100 172
FA2-600-1 600 24” 596-620 840 100 172
FA2-600-2 600 24” 615-639 840 100 172
Category:

Description

Universal Flanged Adaptors – Series 2009

SPECIFICATIONS
Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

T-BOLTS AND NUTS: Carbon steel grade 8.8 with dacromet coating
Flange:
Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Allowed Angular Deflection:
3°
Joint Gap:
19mm
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
Universal Flanged Adaptors Series 2, designed by our own company in 2008, with wide range tolerance on O.D. (up to 34mm), the flanged joint products to the plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges.

The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.

The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.

The further more reasonable sizes and ranges can allow the pipes of main sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled.
Note: The accessories for SYI Universal Flanged Adaptors are usually supplied by assembled on the body.
