Universal Flanged Adaptors – Series 2001

Universal Flanged Adaptors – Series 2001Universal-Flanged-Adaptors---Series-2001-001

SYI is keeping on designing the series of coupling
products for pursuing the better performance and
easier operation.

New design and patterns could be developed based
on customers'requirement.

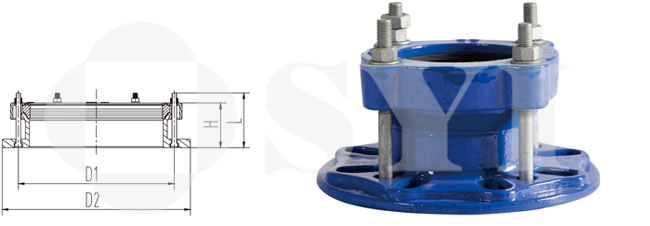

SYI Series No. DN Pipe O.D. range D2 H L
mm inch mm mm mm mm
FA1-40-1 40 1.5'' 48-58 150 76 130
FA1-50-1 50 2'' 59-73 165 76 130
FA1-65-1 65 2 1/2'' 72-85 185 76 130
FA1-80-1 80 3'' 88-103 220 76 130
FA1-100-1 100 4'' 108-128 225 76 130
FA1-125-1 125 5'' 132-154 280 76 130
FA1-150-1 150 6'' 159-182 295 76 130
FA1-175-1 175 7'' 192-209 340 76 130
FA1-200-1 200 8'' 218-235 340 76 130
FA1-250-1 250 10'' 271-289 410 85 130
FA1-250-2 250 10'' 246-270 410 85 130
FA1-300-1 300 12'' 322-340 485 90 130
FA1-300-2 300 12'' 315-332 485 90 130
FA1-350-1 350 14'' 374-391 520 90 160
FA1-400-1 400 16'' 417-437 580 90 160
FA1-450-1 450 18'' 480-500 640 90 160
FA1-450-2 450 18'' 470-485 640 90 160
FA1-500-1 500 20'' 526-546 715 90 160
FA1-600-1 600 24'' 630-650 840 90 160
Category:

Description

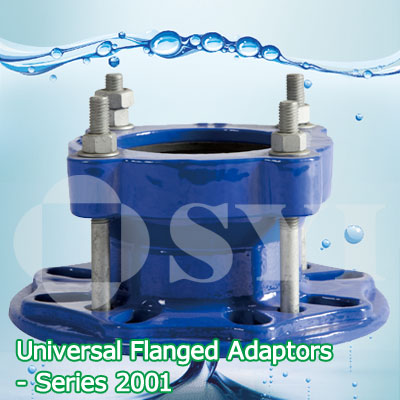

Universal Flanged Adaptors – Series 2001

SPECIFICATIONS
Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

T-BOLTS AND NUTS: Carbon steel grade 8.8 with dacromet coating
Flange:
Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Allowed Angular Deflection:
3°
Joint Gap:
19mm
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
Universal Flanged Adaptors Series 1, developed in 2001, with wide range tolerance on O.D. (up to 23mm), are suitable for jointing the flanged joint products to the plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges, and the multi-drilling flanges further simplify installation.

The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.

The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
Note: The accessories for SYI Universal Flanged Adaptors are usually supplied by assembled on the body.
