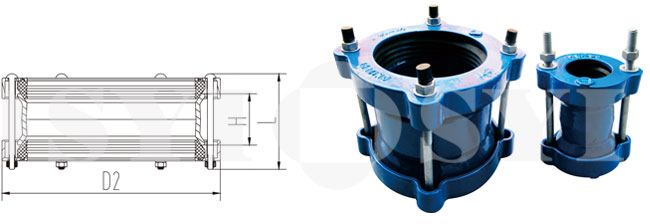

SYI Series No. DN Pipe O.D. range D2 H L
mm inch mm mm mm mm
UC1-40-1 40 1.5” 48-58 139 95 200
UC1-50-1 50 2” 59-73 160 100 200
UC1-65-1 65 2 1/2” 72-85 171 100 200
UC1-80-1 80 3” 88-103 186 100 200
UC1-100-1 100 4” 108-128 211 100 200
UC1-125-1 125 5” 132-154 245 100 200
UC1-150-1 150 6” 159-182 277 100 200
UC1-175-1 175 7” 192-209 305 100 200
UC1-200-1 200 8” 218-235 323 100 200
UC1-250-1 250 10” 271-289 385 100 200
UC1-250-2 250 10” 246-270 385 100 200
UC1-300-1 300 12” 322-340 437 150 200
UC1-300-2 300 12” 315-332 437 150 200
UC1-350-1 350 14” 374-391 495 150 260
UC1-400-1 400 16” 417-437 532 150 260
UC1-450-1 450 18” 480-500 597 150 260
UC1-450-2 450 18” 470-485 597 150 260
UC1-500-1 500 20” 526-546 643 150 260
UC1-600-1 600 24” 630-650 747 150 260
Category:

Description

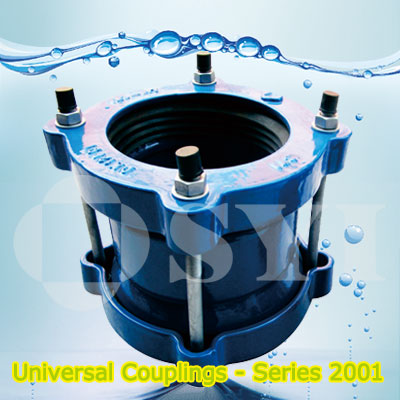

Universal Couplings – Series 2001

SPECIFICATIONS
Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

D-BOLTS AND NUTS: Carbon steel grade 8.8 with dacromet coating
Working Pressure:
16 Bar or 250 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Allowed Angular Deflection:
6°
Joint Gap:
19mm
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
Universal Couplings Series 1, developed in 2001,with wide range tolerance on O.D. (up to 23mm), are suitable for jointing plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges.

The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.

The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
Note: The accessories for Universal Couplings are usually supplied by assembled on the body.
