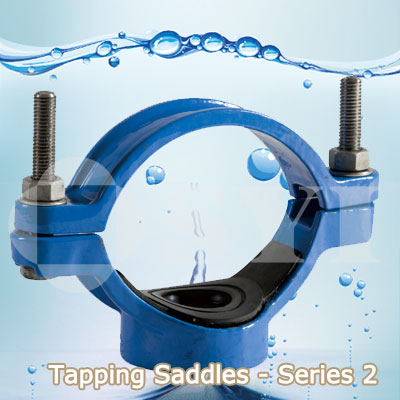

Tapping Saddles – Series 2 For uPVC Pipes

Tapping Saddles – Series 1

For uPVC Pipes

Tapping-Saddles---Series-1-For-uPVC-Pipes-SYI-Pipeline002

SYI Series No. DN Tapping D H1 H2 L Bolts No.
mm inch mm mm mm mm
TS2-1-90*1 2 90 1/2” 165 60 44 74 2
TS2-1-90*3 4 90 3/4” 165 60 44 74 2
TS2-1-90*1 90 1” 165 60 44 74 2
TS2-1-110*1 2 110 1/2” 192 70 54 79 2
TS2-1-110*3 4 110 3/4” 192 70 54 79 2
TS2-1-110*1 110 1” 192 70 54 79 2
TS2-1-160*1 2 160 1/2” 264 90 75 98 2
TS2-1-160*3 4 160 3/4” 264 90 75 98 2
TS2-1-160*1 160 1” 264 90 75 98 2
TS2-1-225*1 2 225 1/2” 323 118 103 98 2
TS2-1-225*3 4 225 3/4” 323 118 103 98 2
TS2-1-225*1 225 1” 323 118 103 98 2
TS2-1-280*1 2 280 1/2” 371 144 129 98 2
TS2-1-280*3 4 280 3/4” 371 144 129 98 2
TS2-1-280*1 280 1” 371 144 129 98 2
Category:

Description

Tapping Saddles – Series 2

SPECIFICATIONS

Tapping-Saddles---Series-1-For-uPVC-Pipes-SYI-Pipeline001

Material:

BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

TAPPING: Nylon

BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internal coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Use:
Tapping Saddles, are used to make permanent (hot) tapping on existing or new pipe lines.Perfect seal through gaskets, which are enclosed in the chamber of the alignment saddle.Suitable for alignments under pressure.The Nylon Tapping Inner can be changed according to the requirement with the same body.
Note: The accessories for Tapping Saddles are usually supplied by assembled on the body.
