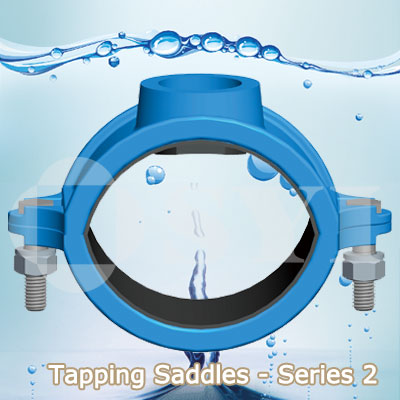

Tapping Saddles – Series 2 For CI DI Pipes

Tapping Saddles – Series 2

For CI DI Pipes

Tapping-Saddles---Series-1-For-uPVC-Pipes-SYI-Pipeline002

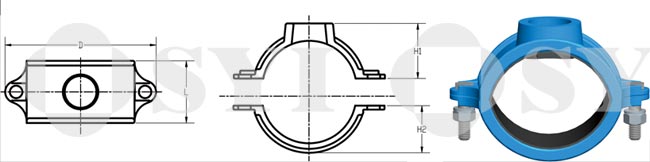

SYI Series No. DN Tapping D H1 H2 L Bolts No.
mm inch mm mm mm mm
TS2-2-80*1 2 80 1/2” 188 51 44.5 32 2
TS2-2-80*3 4 80 3/4” 188 51 44.5 32 2
TS2-2-80*1 80 1” 188 51 44.5 32 2
TS2-2-100*1 2 100 1/2” 215 59 53 36 2
TS2-2-100*3 4 100 3/4” 215 59 53 36 2
TS2-2-100*1 100 1” 215 59 53 36 2
TS2-2-150*1 2 150 1/2” 280 89 83 40 2
TS2-2-150*3 4 150 3/4” 280 89 83 40 2
TS2-2-150*1 150 1” 280 89 83 40 2
TS2-2-200*1 2 200 1/2” 319 112 106 43 2
TS2-2-200*3 4 200 3/4” 319 112 106 43 2
TS2-2-200*1 200 1” 319 112 106 43 2
TS2-2-250*1 2 250 1/2” 392 137 131.5 50 2
TS2-2-250*3 4 250 3/4” 392 137 131.5 50 2
TS2-2-250*1 250 1” 392 137 131.5 50 2
Category:

Description

Tapping Saddles – Series 2

SPECIFICATIONS

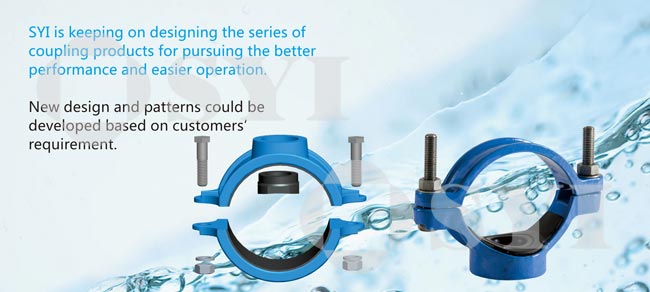

Tapping-Saddles---Series-1-For-uPVC-Pipes-SYI-Pipeline001

Material:

BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

TAPPING: Nylon

BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internal coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Use:
Tapping Saddles, are used to make permanent (hot) tapping on existing or new pipe lines.Perfect seal through gaskets, which are enclosed in the chamber of the alignment saddle.Suitable for alignments under pressure. The Nylon Tapping Inner can be changed according to the requirement with the same body.
Note: The accessories for Tapping Saddles are usually supplied by assembled on the body.
