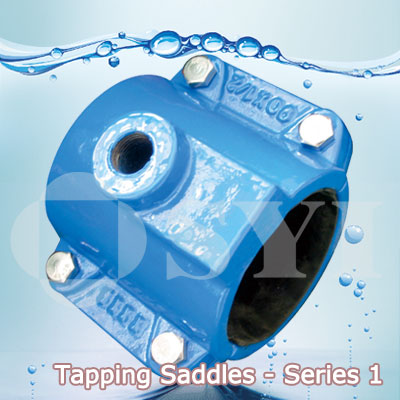

Tapping Saddles – Series 1 For uPVC Pipes

Tapping Saddles – Series 1

For uPVC Pipes

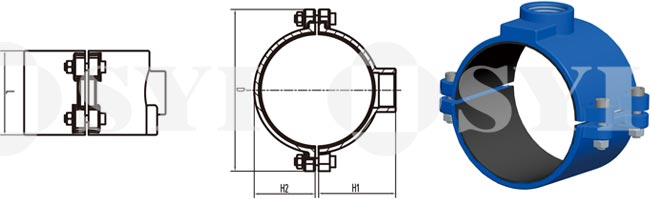

Tapping-Saddles---Series-1-SYI-Pipeline002



SYI Series No. DN Tapping L D H1 H2 Bolts No.
mm inch mm mm mm mm
TS1-1-40*1 2 40 1/2” 80 102 41 25 2
TS1-1-40*3 4 40 3/4” 80 102 41 25 2
TS1-1-40*1 40 1” 80 102 41 25 2
TS1-1-50*1 2 50 1/2” 80 110 46 30 2
TS1-1-50*3 4 50 3/4” 80 110 46 30 2
TS1-1-50*1 50 1” 80 110 53 30 2
TS1-1-50*1 1 4 50 1 1/4” 80 110 53 30 2
TS1-1-50*1 1 2 50 1 1/2” 80 110 53 30 2
TS1-1-63*1 2 63 1/2” 100 130 55 36.5 4
TS1-1-63*3 4 63 3/4” 100 130 55 36.5 4
TS1-1-63*1 63 1” 100 130 55 36.5 4
TS1-1-63*1 1 4 63 1 1/4” 100 130 55 36.5 4
TS1-1-63*1 1 2 63 1 1/2” 100 130 55 36.5 4
TS1-1-75*1 2 75 1/2” 100 142 61 43 4
TS1-1-75*3 4 75 3/4” 100 142 61 43 4
TS1-1-75*1 75 1” 100 142 61 43 4
TS1-1-75*1 1 4 75 1 1/4” 100 142 61 43 4
TS1-1-75*1 1 2 75 1 1/2” 100 142 61 43 4
TS1-1-75*2 75 2” 100 142 65 43 4
TS1-1-90*1 2 90 1/2” 120 155 68 51 4
TS1-1-90*3 4 90 3/4” 120 155 68 51 4
TS1-1-90*1 90 1” 120 155 68 51 4
TS1-1-90*1 1 4 90 1 1/4” 120 155 68 51 4
TS1-1-90*1 1 2 90 1 1/2” 120 155 68 51 4
TS1-1-90*2 90 2” 120 155 72 51 4
TS1-1-110*1 2 110 1/2” 120 173 78 61 4
TS1-1-110*3 4 110 3/4” 120 173 78 61 4
TS1-1-110*1 110 1” 120 173 78 61 4
TS1-1-110*1 1 4 110 1 1/4” 120 173 78 61 4
TS1-1-110*1 1 2 110 1 1/2” 120 173 78 61 4
TS1-1-110*2 110 2” 120 173 82 61 4
TS1-1-160*1 2 160 1/2” 120 231 102.5 86.5 4
TS1-1-160*3 4 160 3/4” 120 231 102.5 86.5 4
TS1-1-160*1 160 1” 120 231 102.5 86.5 4
TS1-1-160*1 1 4 160 1 1/4” 120 231 102.5 86.5 4
TS1-1-160*1 1 2 160 1 1/2” 120 231 102.5 86.5 4
TS1-1-160*2 160 2” 120 231 106.5 86.5 4
TS1-1-160*2 1 2 160 2 1/2” 120 231 112 86.5 4
TS1-1-200*1 2 200 1/2” 120 277 122.5 106.5 4
TS1-1-200*3 4 200 3/4” 120 277 122.5 106.5
TS1-1-200*1 200 1” 120 277 122.5 106.5 4
TS1-1-200*1 1 4 200 1 1/4” 120 277 122.5 106.5 4
TS1-1-200*1 1 2 200 1 1/2” 120 277 122.5 106.5 4
TS1-1-200*2 200 2” 120 277 126.5 106.5 4
TS1-1-200*2 1 2 200 2 1/2” 120 277 130.5 106.5 4
TS1-1-200*3 200 3” 120 277 133.5 106.5 4
TS1-1-225*1 2 225 1/2” 120 301 135 120 4
TS1-1-225*3 4 225 3/4” 120 301 135 120 4
TS1-1-225*1 225 1” 120 301 135 120 4
TS1-1-225*1 1 4 225 1 1/4” 120 301 135 120 4
TS1-1-225*1 1 2 225 1 1/2” 120 301 135 120 4
TS1-1-225*2 225 2” 120 301 139 120 4
TS1-1-225*2 1 2 225 2 1/2” 120 301 144 120 4
TS1-1-225*3 225 3” 160 301 147 120 4
Category:

Description



Tapping Saddles – Series 1

SPECIFICATIONS

Tapping-Saddles---Series-1-SYI-Pipeline001

Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internal coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Use:
Tapping Saddles, are used to make permanent (hot) tapping on existing or new pipe lines.
Perfect seal through gaskets, which are enclosed in the chamber of the alignment saddle.
Suitable for alignments under pressure.
Note: The accessories for Tapping Saddles are usually supplied by assembled on the body.
