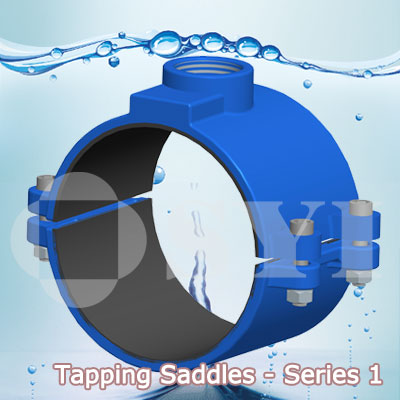

Tapping Saddles – Series 1 For CI DI Pipes

Tapping Saddles – Series 1

For CI DI Pipes

Tapping-Saddles---Series-1-SYI-Pipeline002

SYI Series No. DN Tapping L D H1 H2 Bolts No.
mm inch mm mm mm mm
TS1-2-80*1 2 80 1/2” 120 166 72 56 4
TS1-2-80*3 4 80 3/4” 120 166 72 56 4
TS1-2-80*1 80 1” 120 166 72 56 4
TS1-2-80*1 1 4 80 1 1/4” 120 166 72 56 4
TS1-2-80*1 1 2 80 1 1/2” 120 166 72 56 4
TS1-2-80*2 80 2” 120 166 76 56 4
TS1-2-100*1 2 100 1/2” 120 186 81 65 4
TS1-2-100*3 4 100 3/4” 120 186 81 65 4
TS1-2-100*1 100 1” 120 186 81 65 4
TS1-2-100*1 1 4 100 1 1/4” 120 186 81 65 4
TS1-2-100*1 1 2 100 1 1/2” 120 186 81 65 4
TS1-2-100*2 100 2” 120 186 85 65 4
TS1-2-150*1 2 150 1/2” 120 247 106 90 4
TS1-2-150*3 4 150 3/4” 120 247 106 90 4
TS1-2-150*1 150 1” 120 247 106 90 4
TS1-2-150*1 1 4 150 1 1/4” 120 247 106 90 4
TS1-2-150*1 1 2 150 1 1/2” 120 247 106 90 4
TS1-2-150* 2 150 2” 120 247 110 90 4
TS1-2-150*2 1 2 150 2 1/2” 120 247 115 90 4
Category:

Description



Tapping Saddles – Series 1

SPECIFICATIONS

Tapping-Saddles---Series-1-SYI-Pipeline001

Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internal coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Use:
Tapping Saddles, are used to make permanent (hot) tapping on existing or new pipe lines.
Perfect seal through gaskets, which are enclosed in the chamber of the alignment saddle.
Suitable for alignments under pressure.
Note: The accessories for Tapping Saddles are usually supplied by assembled on the body.
