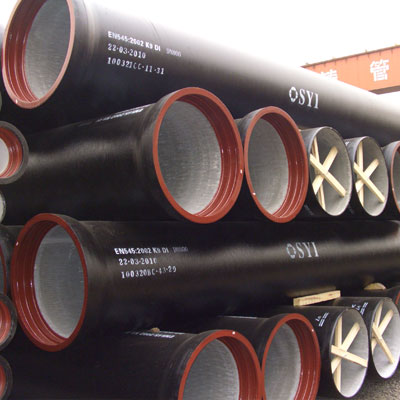

T Type Push-in Joint Socket and Spigot Pipe

T-Type-Push-in-Joint-Socket-and-Spigot-Pipe

T Type Push-in Joint Socket and Spigot Pipe K7-K14

 DN  DE Iron Wall Thickness
e
K7 K8 K9 K10 K12 K14
 80 98  6 6 6 6 7 8.1
 100 118  6 6 6 6 7.2 8.4
125 144  6 6 6 6.3 7.5 8.8
 150 170  6 6 6 6.5 7.8 9.1
 200 222  6 6 6.3 7 8.4 9.8
 250 274  6 6 6.8 7.5 9 10.5
 300 326  6 6.4 7.2 8 9.6 11.2
 350 378  6 6.8 7.7 8.5 10.2 11.9
 400 429  6.3 7.2 8.1 9 10.8 12.6
450 480  6.7 7.6 8.6 9.5 11.4  13.3
 500 532  7 8 9 10 12 14
 600 635  7.7 8.8 9.9 11 13.2 15.4
 700 738  9.6 10.8 12 14.4 16.8
 800 842  10.4 11.7 13 15.6 18.2
 900 945  11.2 12.6 14 16.8 19.6
 1000 1048  12 13.5 15 18 21
 1100 1152  14.4 16 19.2 22.4
 1200 1255  15.3 17 20.4 23.8
 1400 1462  17.1 19 22.8 26.6
 1500 1565  18 20 24 28
 1600 1668  18.9 21 25.2 29.4
 1800 1875  20.7 23 27.6 32.3
 2000 2082  22.5 25 30 35
 2000 2082  24.3 27 32.4 37.8
 2000 2082  26.1 29 34.8 40.6
 2000 2082  27.9 31 37.2 43.4





T Type Push-in Joint Socket and Spigot Pipe Class 20-100

 DN  DE Iron Wall Thickness
e
Nominal

Limit Deviations

Class 20

Class 25

Class 30

Class 40

Class 50

Class 64

Class 100
40 56 +1/-1.2 3.0 3.5 4.0 4.7
50 66 +1/-1.2 3.0 3.5 4.0 4.7
 60 77 +1/-1.2 3.0 3.5 4.0 4.7
 65 82 +1/-1.2 3.0  3.5 4.0 4.7
 80 98 +1/-2.7 3.0 3.5 4.0 4.7
 100 118 +1/-2.8 3.0 3.5 4.0  4.7
125 144 +1/-2.8 3.0 3.5 4.0 5.0
 150 170 +1/-2.9 3.0 3.5  4.0 5.9
 200 222 +1/-3.0 3.1 3.9 5.0 7.7
 250 274 +1/-3.1 3.9 4.8 6.1 9.5
 300 326 +1/-3.3 4.6 5.7 7.3 11.2
 350 378  +1/-3.4 4.7 5.3 6.6 8.5 13.0
 400 429 +1/-3.5 4.8 6.0 7.5 9.6 14.8
450 480 +1/-3.6 5.1 6.8 8.4 10.7 16.6
 500 532  +1/-3.8 5.6 7.5 9.3 11.9 18.3
 600 635 +1/-4.0 6.7 8.9 11.1 14.2 21.9
 700 738  +1/-4.3 6.8 7.8 10.4 13.0 16.5
 800 842 +1/-4.5 7.5 8.9 11.9 14.8 18.8
 900 945  +1/-4.8 8.4 10.0 13.3 16.6
 1000 1048  +1/-5.0 9.3 11.1 14.8 18.4
 1100 1152  +1/-6.0 8.2 10.2 12.2 16.2 20.2
 1200 1255 +1/-5.8 8.9 11.1 13.3 17.7 22.0
 1400 1462  +1/-6.6 10.4 12.9 15.5
 1500 1565  +1/-7.0 11.1 13.9 16.6
 1600 1668  +1/-7.4 11.9 14.8 17.7
 1800 1875  +1/-8.2 13.3 16.6 19.9
 2000 2082 +1/-9.0 14.8 18.4 22.1
