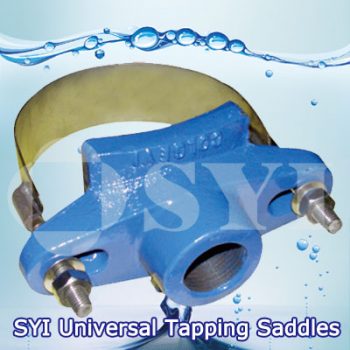

SYI Universal Tapping Saddles

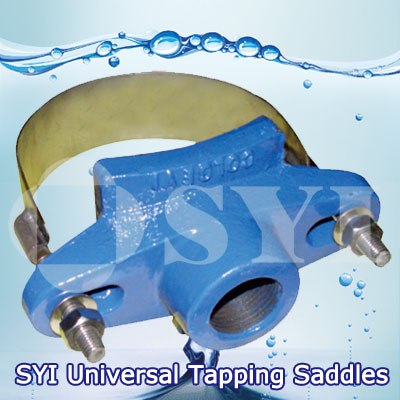

SYI Universal Tapping Saddles

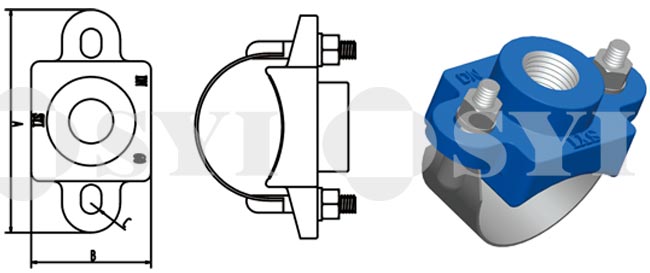

SYI-Universal-Tapping-Saddles-SYI-Pipeline002

SYI Series No. DN Tapping Pipe O.D. range A B Bolts No.
mm inch mm mm mm
SYI-UTS-60*1 2 60 1/2” 74-88 130 70 2
SYI-UTS-60*3 4 60 3/4” 74-88 130 70 2
SYI-UTS-60*1 60 1” 74-88 130 70 2
SYI-UTS-60*1 1 4 60 1 1/4” 74-88 130 70 2
SYI-UTS-60*1 1 2 60 1 1/2” 74-88 130 70 2
SYI-UTS-60*2 60 2” 74-88 130 70 2
SYI-UTS-80*1 2 80 1/2” 84-106 160 80 2
SYI-UTS-80*3 4 80 3/4” 84-106 160 80 2
SYI-UTS-80*1 80 1” 84-106 160 80 2
SYI-UTS-80*1 1 4 80 1 1/4” 84-106 160 80 2
SYI-UTS-80*1 1 2 80 1 1/2” 84-106 160 80 2
SYI-UTS-80*2 80 2” 84-106 160 80 2
SYI-UTS-100*1 2 100 1/2” 84-120 160 80 2
SYI-UTS-100*3 4 100 3/4” 84-120 160 80 2
SYI-UTS-100*1 100 1” 84-120 160 80 2
SYI-UTS-100*1 1 4 100 1 1/4” 84-120 160 80 2
SYI-UTS-100*1 1 2 100 1 1/2” 84-120 160 80 2
SYI-UTS-100*2 100 2” 84-120 160 80 2
Category:

Description

Tapping Saddles – Series 2

SPECIFICATIONS

SYI-Universal-Tapping-Saddles-SYI-Pipeline001

Material:

BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

BAND: Stainless Steel

BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internal coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Use:
SYI Universal Tapping Saddles, are used to make permanent (hot) tapping on existing or new pipe lines for water and gas.

Applicable for various of diameters and materials, such as cast iron, ductile iron, uPVC, steel and asbestos-cement.

Perfect seal through gaskets, which are enclosed in the chamber of the alignment saddle.

Suitable for alignments under pressure.
Note: The accessories for SYI Universal Tapping Saddles are usually supplied by assembled on the body.
