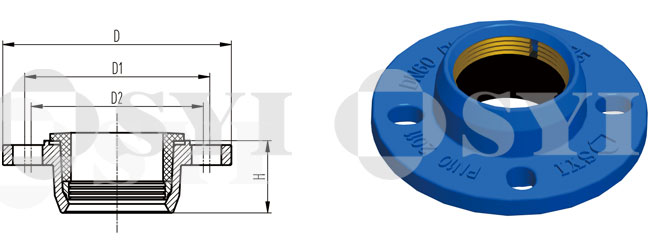

SYI Series No. DN D D1 H L
mm mm mm mm mm
SYI-QA2-40 50 40/50 150 120 110 52
SYI-QA2-50 50 50/50 165 135 125 52
SYI-QA2-50 63 50/63 165 135 125 54
SYI-QA2-60 63 60-65/63 185 145 135 54
SYI-QA2-65 75 60-65/75 185 145 135 57
SYI-QA2-80 75 80/75 200 165 155 57
SYI-QA2-80 90 80/90 200 165 155 60
SYI-QA2-100 90 100/90 220 190 180 60
SYI-QA2-100 110 100/110 220 190 180 64
SYI-QA2-125 125 125/125 250 218 210 72
SYI-QA2-125 140 125/140 250 218 210 76
SYI-QA2-150 160 150/160 285 248 240 80
SYI-QA2-200 180 200/180 340 294 304 86
SYI-QA2-200 200 200/200 340 294 304 90
SYI-QA2-200 225 200/225 340 294 304 90
SYI-QA2-250 250 250/250 400 360 350 92
SYI-QA2-300 280 300/280 455 414 402 98
SYI-QA2-300 315 300/315 455 414 402 102
SYI-QA2-350 355 350/355 520 478 464 114
SYI-QA2-400 400 400/400 580 535 515 128
Category:

Description

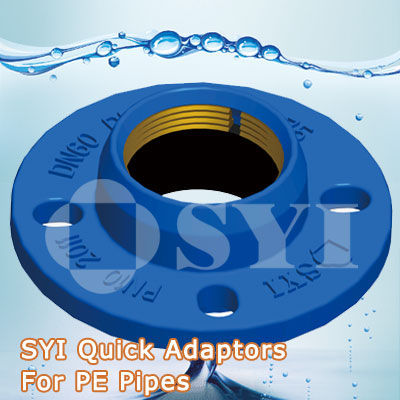

SYI Quick Adaptors For PE Pipes

SPECIFICATIONS

SYI-Quick-Adaptors-For-uPVC-Pipes-002

Material:

BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

OPTED GRIPING RING: Brass
Flange:
PN10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
SYI Quick Adaptors, designed by experienced engineers in SYI in 2010 and applied the patent, specially used for connecting uPVC pipes with flanged products, and also for PE pipes with the gripping ring of same ourside diameter.

The gripping ring can simultaneously ensure pipe end retention and tightness, and restrict to pull out.
Note: The bolts and nuts are supplied respectively with the Quick Adaptors usually .
