Description

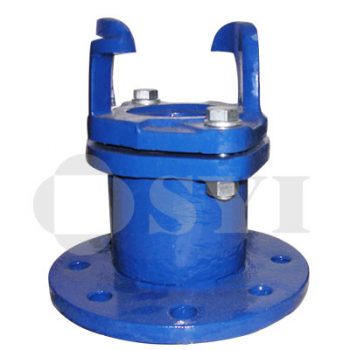

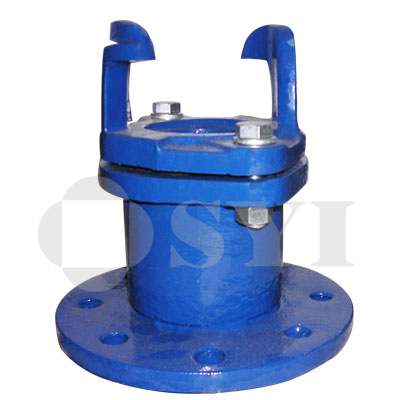

Spring Hydrant |
|
 |
|
| Technical Specifications: | |
| Flange Drilling: ISO7005-2 ( EN1092-2, DIN2501 ) | Working temperature: 0-100„ƒ Working pressure: PN10/PN16 |

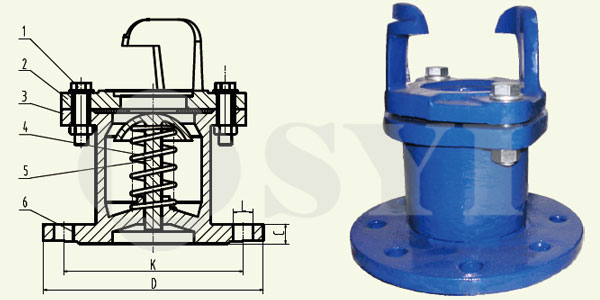

Main Parts and Material:
| Item | Part Name | Material |
| 1 | Bolts And Nuts | Carbon Steel |
| 2 | Cap | Cast Iron/Ductile Iron |
| 3 | Body | Cast Iron/Ductile Iron |
| 4 | Plug | Copper |
| 5 | Spring | Stainless Steel |
| 6 | Flange | Cast Iron/Ductile Iron |
Main Dimensions:
| PN | DN | D | C | K | L | Holes |
| 16 | 80 | 200 | 19 | 160 | 18 | 8 |
