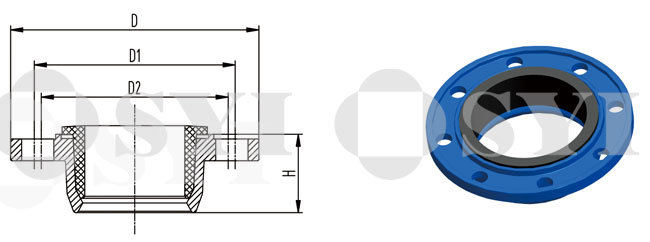

SYI Series No. DN D D1 H
mm mm mm mm
QA1-40 40 40/40
QA1-40 50 40/50
QA1-40-50 50 40-50/50 165 125 54
QA1-50 63 50/63 165 125 54
QA1-50-60-65 63 50-60-65/63
QA1-60-65 63 60-65/63 185 140 58
QA1-60-65 75 60-65/75 185 140 58
QA1-80 90 80/90 200 160 62
QA1-100 110 100/110 220 180 72
QA1-125 125 125/125 250 210 72
QA1-125 140 125/140 250 210 72
QA1-150 160 150/160 285 240 80
QA1-200 200 200/200 340 292 90
QA1-200 225 200/225 340 295 90
QA1-250 250 250/250 403 355 90
QA1-300 315 300/315 461 400/410 95
QA1-400 400 400/400 580 515/525 130
Category:

Description

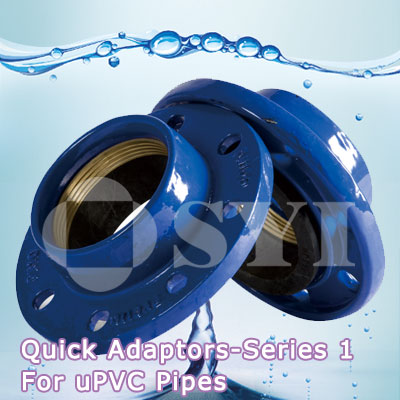

Quick Adaptors-Series 1 For uPVC Pipes

SPECIFICATIONS

Quick-Adaptors-Series-1-For-uPVC-Pipes-002

Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

OPTED GRIPING RING: Brass
Flange:
PN10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
Quick Adaptors, developed in 2002, specially used for connecting uPVC pipes with flanged products, and also for PE pipes with the gripping ring of same ourside diameter. The gripping ring can simultaneously ensure pipe end retention and tightness, and restrict to pull out.
Note: The bolts and nuts are supplied respectively with the Quick Adaptors usually .
