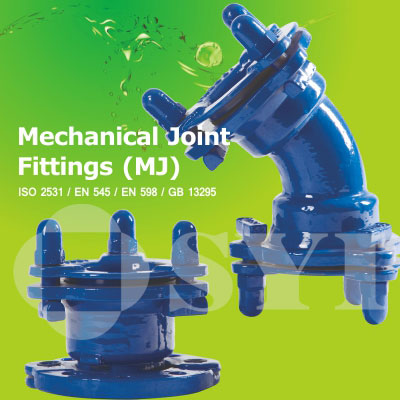

Mechanical Joint Fittings(MJ)

06

DN J B E
60 143 103 82
80 169 124 104
100 195 150 124
125 221 176 150
150 247 202 176
200 300 255 229
250 352 307 281
300 404 359 333
350 460 411 386
400 510 462 437
450 564 514 488
500 615 565 540
600 720 668 643

Dimensions in mm.



QQ截图20141106162513

SYI Series No. DN L Mass (kg) Standard Pattern
without glands  with glands completely
MMK45-MJ-60 60 45 4.60 6.12 7.68
MMK45-MJ-80 80 55 6.80 8.76 11.10 y
MMK45-MJ-100 100 65 10.00 13.20 15.54 y
MMK45-MJ-125 125 75 13.00 16.80 19.14 y
MMK45-MJ-150 150 85 16.50 20.90 24.02 y
MMK45-MJ-200 200 110 25.00 31.40 35.30 y
MMK45-MJ-250 250 130 35.20 44.00 48.68 y
MMK45-MJ-300 300 150 49.60 60.00 65.46 y
MMK45-MJ-350 350 175 61.20 74.20 80.44
MMK45-MJ-400 400 195 74.50 90.10 96.34
MMK45-MJ-450 450 220 98.20 119.60 126.32
MMK45-MJ-500 500 240 124.00 154.40 162.80
MMK45-MJ-600 600 285 183.50 223.50 233.70
MMK45-K-700 700 330 289
MMK45-K-800 800 370 373
MMK45-K-900 900 415 488
MMK45-K-1000 1000 460 629
MMK45-K-1100 1100 505 856
MMK45-K-1200 1200 550 943
MMK45-K-1400 1400 515 1223
MMK45-K-1500 1500 540 1444
MMK45-K-1600 1600 565 1740
MMK45-K-1800 1800 610 2296
MMK45-K-2000 2000 660 2970
MMK45-K2200 2200 710 3762
MMK45-K-2400 2400 755 4943
MMK45-K-2600 2600 805 5957
Category:

Description

ISO 2531 / EN 545 / EN 598 / GB 13295

Specifications

Mechanical Joint Fittings (MJ)

 Material
  BODY: Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
  GLAND: Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
  GASKET: Rubber E.P.D.M. / NBR / SBR in accordance with EN 681.1
  T BOLTS AND NUTS: Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
 Working Pressure
 40 Bar
  Fluid Temperature
  0°C-50°C, excluding frost
 Coating
  External coatings   Internal coatings
  zinc + bitumen painting
  liquid epoxy resin painting
  epoxy applied by FBE
  according to customers’ requirements		   cement mortar lining
  liquid epoxy resin painting
  epoxy applied by FBE
  according to customers’ requirements
 Reference Rules
  Dimensions and testing in accordance with ISO 2531 / EN 545
 Use

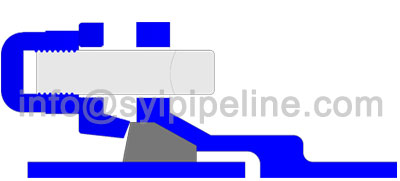

  For Mechanical Joint fittings, sealing is obtained by applying pressure to the
  gasket by gland. MJ fittings permits significant angular deflextion both during
  and after installation and can accept a light offset of the centreline

Note:The gaskets, bolts & nuts are supplied separately with the fittings usually.
