Description
ISO 2531 / EN 545 / EN 598 / GB 13295
Specifications

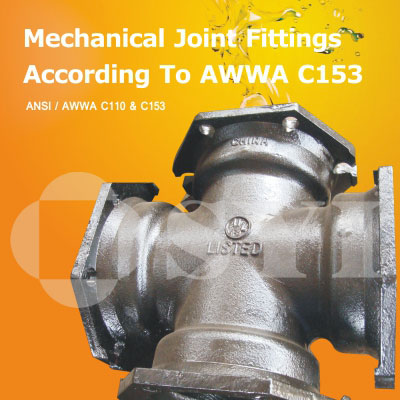

Mechanical Joint Fittings According To AWWA C153
| Material | |
| Ductile iron ASTM A536 | |
| Working Pressure | |
| 350 PSI rating for 4″-24″ sizes, 250 PSI rating for 30″-48″ sizes | |
| Coating | |
| External coatings | Internal coatings |
| bitumen painting zinc + bitumen painting
liquid epoxy resin painting |
bitumen painting cement mortar lining
liquid epoxy resin painting |
| Reference Rules | |
| Dimensions and testing in accordance with ANSI/AWWA C153 / A21.53 | |
| Use | |
| Mechanical joint in which sealing is obtained by applying pressure to the gasket by gland. |
|
Note:The gaskets, bolts & nuts are supplied separately with the fittings usually.
