Description

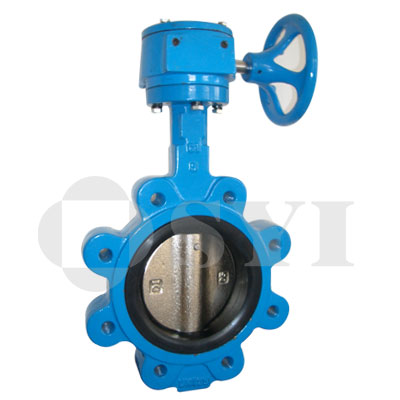

Gear Operated Lug Butterfly Valve |
|
 |
|
| Technical Specifications: | |
| Face to face: API 609 Flange drilling: DIN2501, ANSI B 16.10, EN1092 |
Testing and checking: ISO/DIS5208 Working pressure: PN10/PN16 |
Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | GG25/GGG40 | 3 | Disc | GGG40 / CF8M |
| 2 | Shaft | Stainless Steel | 4 | O-ring | NBR |

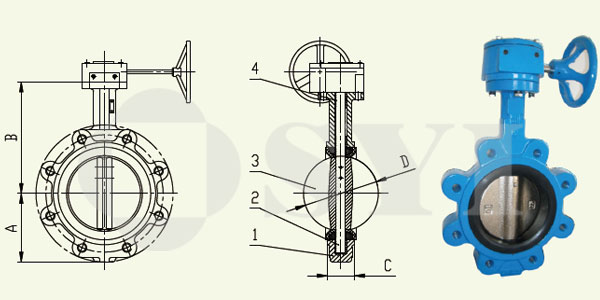

Main Dimensions:
| DN MM | A | B | C |
| 50 | 273 | 161 | 42 |
| 65 | 296 | 175 | 44.7 |
| 80 | 308 | 181 | 45.2 |
| 100 | 348 | 200 | 52.1 |
| 125 | 372 | 213 | 54.4 |
| 150 | 397 | 226 | 55.8 |
| 200 | 480 | 260 | 60.8 |
| 250 | 540 | 292 | 65.6 |
| 300 | 624 | 337 | 76.9 |
| 350 | 680 | 368 | 76.5 |
| 400 | 781 | 400 | 85.7 |
| 450 | 822 | 422 | 104.6 |
| 500 | 917.5 | 480 | 130.28 |
| 600 | 1103 | 562 | 151.36 |
