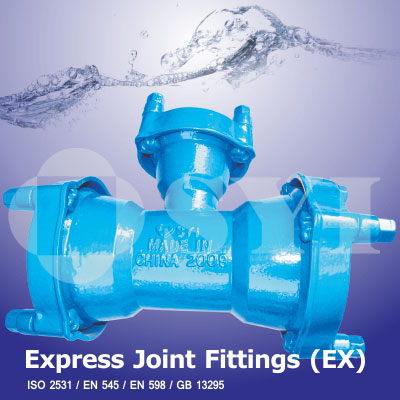

Express Joint Fittings(EX)

05

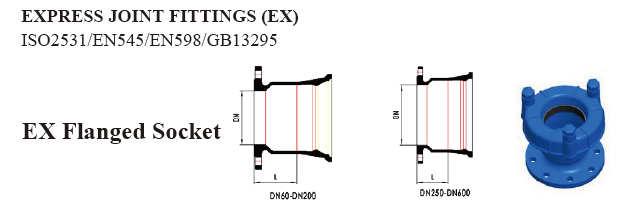

SYI Series No. DN L Mass with glangs Mass completeiy(kg) Patten
PN10 PN16 PN10 PN16
E-EX-60 60 100 8.60 8.60 9.44 9.44
E-EX-80 80 105 10.70 10.70 11.96 11.96
E-EX-100 100 105 12.50 12.50 13.76 13.76
E-EX-125 125 110 14.80 14.80 16.06 16.06
E-EX-150 150 110 18.50 18.50 20.18 20.18
E-EX-200 200 115 24.80 24.60 26.90 26.70
E-EX-250 250 120 35.00 34.70 37.52 37.22 Y
E-EX-300 300 125 46.00 45.70 48.94 48.64
E-EX-350 350 130 53.60 56.60 57.00 60.00
E-EX-400 400 135 63.30 68.80 67.10 72.58
E-EX-450 450 140 85.10 93.00 88.50 96.40 Y
E-EX-500 500 145 99.60 113.00 104.60 118.00 Y
E-EX-600 600 155 129.30 153.00 135.30 159.00 Y

Dimensions in mm.

Category:

Description

ISO 2531 / EN 545 / EN 598 / GB 13295

Specifications

Express Joint Fittings (EX)

 Material
  BODY: Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
  GLAND: Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
  GASKET: Rubber E.P.D.M. / NBR / SBR in accordance with EN 681.1
  HOOKED BOLTS AND NUTS: Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
  Working Pressure
  40 Bar
  Fluid Temperature
  0°C-50°C, excluding frost
 Coating
  External coatings   Internal coatings
  zinc + bitumen painting
  liquid epoxy resin painting
  epoxy applied by FBE
  according to customers’ requirements		   cement mortar lining
  liquid epoxy resin painting
  epoxy applied by FBE
  according to customers’ requirements
 Reference Rules
  Dimensions and testing in accordance with ISO 2531 / EN 545
 Use

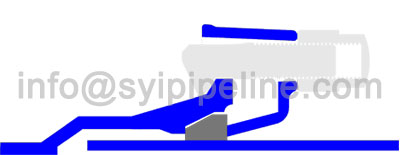

  The EX joint on this kind of fittings can prevent separation of the assembled
  joint, and permits more larger angular deflection both during and after
  installation and which can accept a light offset of the centerline.

Note:The gaskets, bolts & nuts are supplied separately with the fittings usually.
