Dismantling Joints

Dismantling Joints

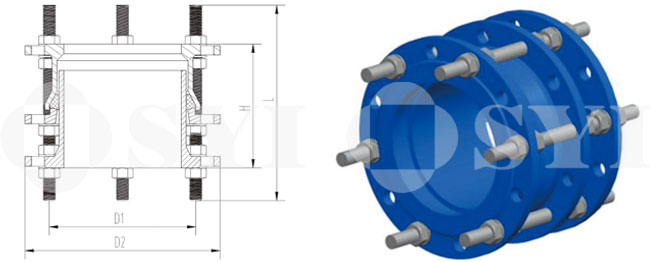

Dismantling-Joints-SYI-Pipeline

SYI Series No. DN Flanged PN D1 D2 H L MIN Length of Joint MAX Length of Joint
mm mm mm mm mm mm mm
DJ-40-1 40 10/16
DJ-50-1 50 10/16
DJ-60-1 60 10/16
DJ-80-1 80 10/16 160 200 200 310 175 225
DJ-80-2 80 25 160 200 210 330 175 225
DJ-100-1 100 10/16 180 220 200 310 175 225
DJ-100-2 100 25 190 235 220 340 175 225
DJ-125-1 125 10/16 210 250 200 310 175 225
DJ-125-2 125 25 220 270 220 340 175 225
DJ-150-1 150 10/16 240 285 200 320 175 225
DJ-150-2 150 25 250 300 200 370 175 225
DJ-200-1 200 10 295 340 220 340 195 245
DJ-200-2 200 16 295 340 220 340 195 245
DJ-200-3 200 25 310 360 220 370 195 245
DJ-250-1 250 10 350 400 230 370 205 255
DJ-250-2 250 16 355 400 230 370 205 255
DJ-250-3 250 25 370 425 230 410 205 255
DJ-300-1 300 10 400 455 250 410 225 275
DJ-300-2 300 16 410 455 250 410 225 275
DJ-300-3 300 25 430 485 250 410 225 275
DJ-350-1 350 10 460 505 260 410 235 285
DJ-350-2 350 16 470 520 260 410 235 285
DJ-350-3 350 25 490 555 260 440 235 285



More data … …

Category:

Description

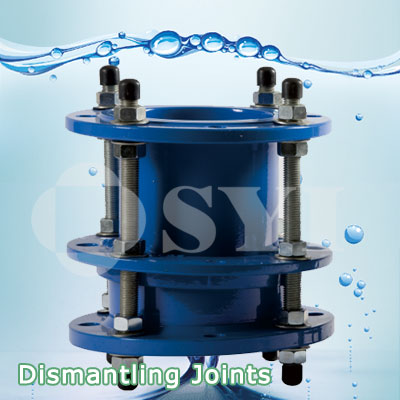

Dismantling Joints

SPECIFICATIONS

Dismantling-Joints-SYI-Pipeline-001

Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

BOLTS AND NUTS: Carbon steel grade 6.8 with galvanization
Flange:
PN10/PN16/PN25 drillings in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16/25 Bar or 250/350 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
Dismantling Joint is assembled by a double flanged compositive fitting acting a retractile action between a flanged spigot and a flange adaptor.

It designed to provide longitudinal adjustment in flanged systems. It provide a simple method for the installation and removal of flanged products by adjusting the distance between two flanged products and turning round.
Note: The accessories for Dismantling Joints are usually supplied by assembled on the body .
