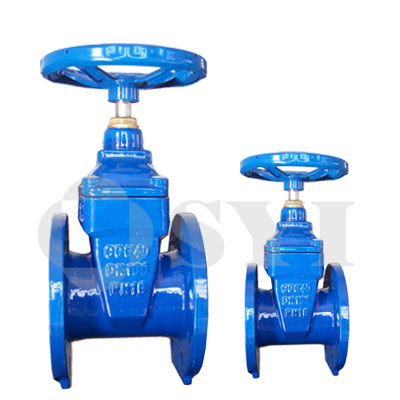

DIN3352 F5 Non-Rising Stem Resilient Seated Gate Valve |
|
 |
|
| Technical Specifications: | |
| Design: DIN3352 Face to face: DIN3202-F5 Flange drilling: DIN2531/DIN2532/DIN2533 / EN1092-2 |
Working temperature: 0-100℃ Working pressure: PN10/PN16 |
Main Parts and Material:

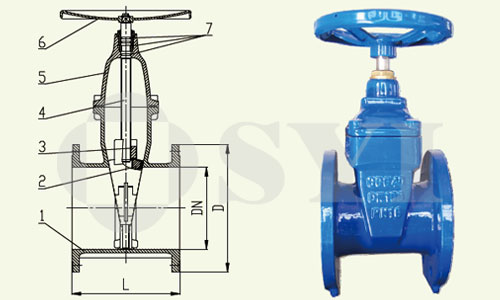

| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | GGG50 | 5 | Bonnet | GGG50 |
| 2 | Disc | GGG50 with NBR/EPDM | 6 | Handwheel | GGG50 |
| 3 | Stem Nut | Brass | 7 | O-ring | NBR/EPDM |
| 4 | Stem | Stainless Steel |
Main Dimensions:
| DN MM | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | |
| D | PN10 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| PN16 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
