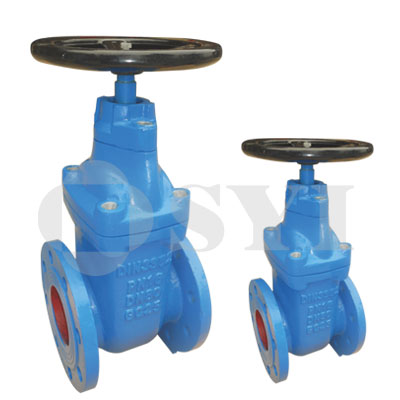

DIN3352 F4 Non-Rising Stem Resilient Seated Gate Valve |
|
 |
|
| Technical Specifications: | |
| Design: DIN3352 Face to face: Flange drilled is according to DIN2531/DIN2532/DIN2533 Flange drilling: DIN2531/DIN2532/DIN2533 |
Working temperature: 0-100℃ Working pressure: PN10/PN16 |

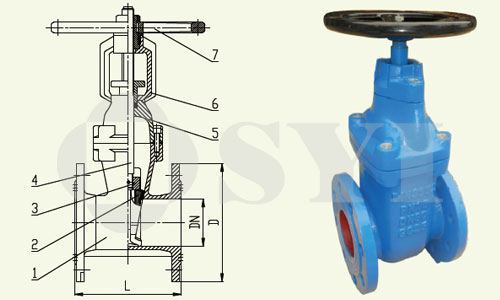

Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | GGG50 | 5 | Bonnet | GGG50 |
| 2 | Disc | GGG50 | 6 | Yoke | GGG50 |
| 3 | Stem Nut | ZCuZn38Mn2Pb2 | 7 | Handwheel | GGG50 |
| 4 | Stem | Stainless Steel |
Main Dimensions:
| DN MM | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
