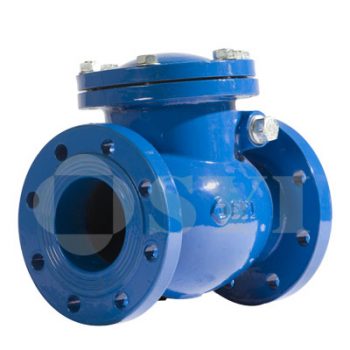

DIN3202 Swing Check Valve

Main Parts and Material:

Item Part Name Material Item Part Name Material
1 Body GGG50 3 WCB GGG50
2 Disc GGG50 With NBR/EPDM 4 Bonnet Cast Iron/Ductile Iron



Main Dimensions:

DN MM 40 50 65 80 100 150 200 250 300 350 400 500
L 180 200 240 260 300 400 500 600 700 381 406 457
D PN10 150 165 185 200 220 285 340 395 445 505 565 670
PN16 150 165 185 200 220 285 340 405 460 520 580 715
Category:

Description

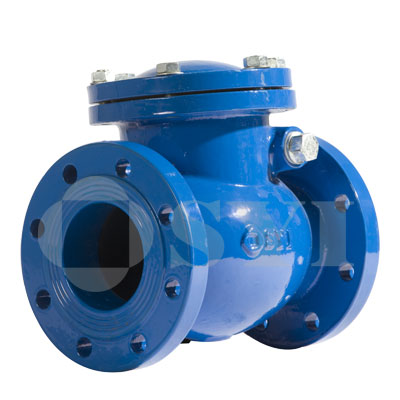

DIN3202 Swing Check Valve
DIN3202-Swing-Check-Valve
Technical Specifications:
Design: DIN3202
Face to face: DIN3202-F6
Flange drilling: DIN2531/DIN2532/DIN2533		 Working temperature: 0-100℃
Working pressure: PN10/PN16

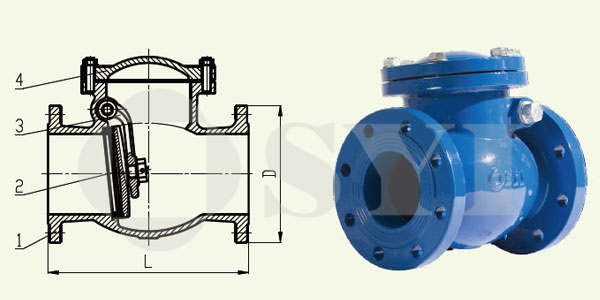

Main Parts and Material:

Item Part Name Material Item Part Name Material
1 Body GGG50 3 WCB GGG50
2 Disc GGG50 With NBR/EPDM 4 Bonnet Cast Iron/Ductile Iron



Main Dimensions:

DN MM 40 50 65 80 100 150 200 250 300 350 400 500
L 180 200 240 260 300 400 500 600 700 381 406 457
D PN10 150 165 185 200 220 285 340 395 445 505 565 670
PN16 150 165 185 200 220 285 340 405 460 520 580 715
