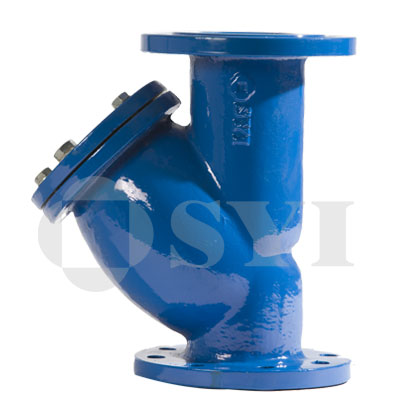

DIN3202 F1 Y-Strainer |
|
 |
|
| Technical Specifications:Â | |
| Design: DIN3202 Face to face: DIN3202-F1 Flange drilling: DIN2531/DIN2532/DIN2533 |
Working temperature: 0- 100℃ Working pressure: PN10/PN16 |
Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | Cast Iron/Ductile Iron | 4 | Bolt&Nut | Carbon Steel |
| 2 | Screen | Stainless Steel | 5 | Plug | Carbon Steel/Cast Iron/Ductile Iron |
| 3 | Gasket | NBR | 6 | Bonnet | Cast Iron/Ductile Iron |
Main Dimensions:
| DN MM | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | |
| H | 108 | 135 | 156 | 176 | 205 | 245 | 303 | 399 | 469 | 537 | |
| D | PN10 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| PN16 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
