Description

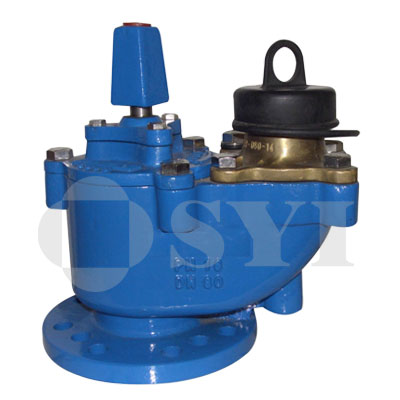

BS750 UndergroundFire Hydrant |
|
 |
|
| Technical Specifications: | |
| Flange drilling: BS4504:2000 Working pressure: MAX PN16 |
Outlet Material is upon your request, and following materials are available Aluminum, Brass, Bronze |

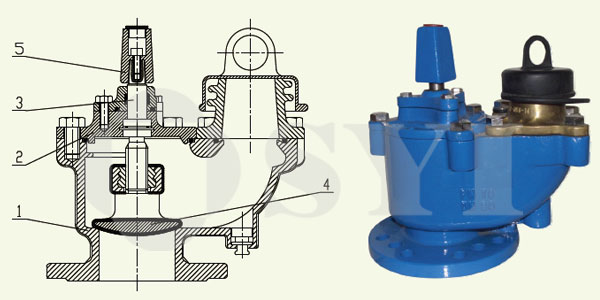

Main Parts and Material:
| Item | Part Name | Material |
| 1 | Body | Grey Iron/ Ductile Iron |
| 2 | Bonnet | Grey Iron/ Ductile Iron |
| 3 | Stem | Brass or Stainless steel |
| 4 | Disc | “Cast Brass/Ductile Iron + VULCANIZED NBR/HR” |
| 5 | Cap | Grey Iron/ Ductile Iron |
Main Dimensions:
| DN | D | H |
| 80 | 200 | 278 |
