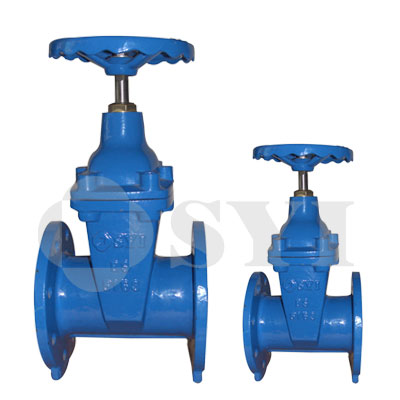

BS5163 Non-Rising Stem Resilient Seated Gate Valve |
|
 |
|
| Technical Specifications: | |
| Design: BS5163 Face to face: BS5163: 1986 Flange drilling: BS4505:2000 |
Working temperature: 0-100℃ Working pressure: PN10/PN16 |

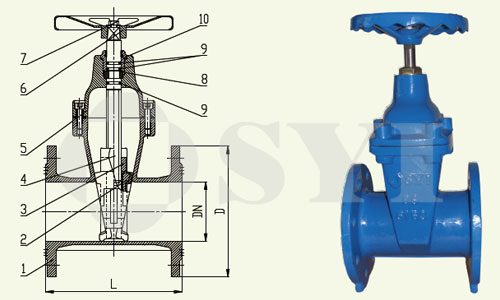

Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | GGG50 | 6 | Handwheel | GGG50 |
| 2 | Disc | GGG50 with NBR/SBR | 7 | Bolt | Galvanized Steel |
| 3 | Stem Nut | Brass | 8 | Locating ring | Brass |
| 4 | Stem | Stainless Steel | 9 | O-ring | NBR/EPDM |
| 5 | Bonnet | GGG50 | 10 | Brass nut | Brass |
Main Dimensions:
| DN MM | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 457 | |
| D | PN10 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 | 505 | 565 | 670 |
| PN16 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 715 | |
