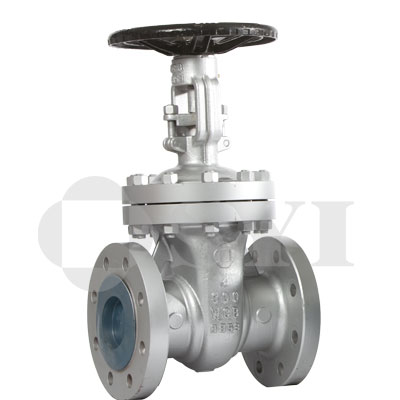

API 600 Cast Steel Gate Valve

Main Parts and Material:

Part Name Material
Body ASTM A216 WCB ASTM A351 Cf8
Wedge disc WCB CF8 CF8M Monel
Stem F6a F304 F316 Monel F304
Wedge disc sealing face 13Cr 13Cr STL 304 STL 316 STL Monel 304 304 STL
Seat ring sealing face 13Cr STL STL 304 STL 316 STL Monel 304 STL STL



Part Name Material
Body ASTM A351 Cf3 ASTM A351 Cf8M ASTM A351 Cf8
Wedge disc
Stem F304L F316 F316
Wedge disc sealing face 304L 304L STL 316 316 STL 316L 316L STL
Seat ring sealing face 304L STL STL 316 316L STL STL



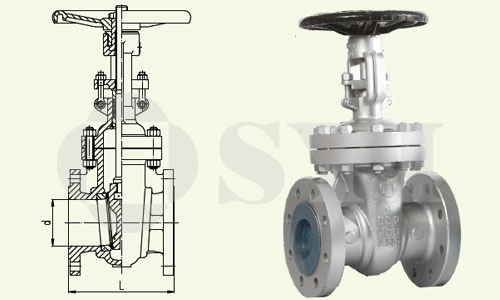

Main Dimensions:

Class DN NPS L MM d
MM
MM IN RF RTJ BW
150
PN20		 50 2 178 191 216 51
65 21/2 191 203 241 64
 80  3 203 216 283 76
 100  4 229 241 305 102
 125 5 254 267 381 127
 150 6 267 279 403 152
 200 8 292 305 419 203
250 10 330 343 457 254
 300 12 356 368 502 305
 350 14 381 394 572 337
 400 16 406 419 610 387
 450 18 432 445 660 438
 500 20 457 470 711 489
 600 24 508 521 813 591
 650 26 559 – 864 633
 700 28 610 – 914 684
300
PN50		  50 2 216 232 216 51
 65 21/2 241 257 241 64
 80 3 283 298 283 76
 100 4 305 321 305 102
 125 5 381 397 381 127
 150 6 403 419  403 152
 200 8 419 435 419 203
 250 10 457 473 457 254
 300 12 502 518 502 305
 350 14 762 778  762 337
 400 16 838 854 838 387
 450 18 914 930 914 438
 500 20 991 1010 991 489
 600 24 1143 1165 1143 591
Category:

Description

API 600 Cast Steel Gate Valve
API-600-Cast-Steel-Gate-Valve
Technical Specifications:
Design and manufacture: API 600
Face to face: ASME B16.10
Flange ends: ASME B16.5		 Pressure/Temperature: ASME B16.34
Testing and checking: API 598



Main Parts and Material:

Part Name Material
Body ASTM A216 WCB ASTM A351 Cf8
Wedge disc WCB CF8 CF8M Monel
Stem F6a F304 F316 Monel F304
Wedge disc sealing face 13Cr 13Cr STL 304 STL 316 STL Monel 304 304 STL
Seat ring sealing face 13Cr STL STL 304 STL 316 STL Monel 304 STL STL



Part Name Material
Body ASTM A351 Cf3 ASTM A351 Cf8M ASTM A351 Cf8
Wedge disc
Stem F304L F316 F316
Wedge disc sealing face 304L 304L STL 316 316 STL 316L 316L STL
Seat ring sealing face 304L STL STL 316 316L STL STL



Main Dimensions:

Class DN NPS L MM d
MM
MM IN RF RTJ BW
150
PN20		 50 2 178 191 216 51
65 21/2 191 203 241 64
80  3 203 216 283 76
100  4 229 241 305 102
125 5 254 267 381 127
150 6 267 279 403 152
200 8 292 305 419 203
250 10 330 343 457 254
300 12 356 368 502 305
350 14 381 394 572 337
400 16 406 419 610 387
450 18 432 445 660 438
500 20 457 470 711 489
600 24 508 521 813 591
650 26 559 – 864 633
700 28 610 – 914 684
300
PN50		 50 2 216 232 216 51
65 21/2 241 257 241 64
80 3 283 298 283 76
100 4 305 321 305 102
125 5 381 397 381 127
150 6 403 419 403 152
200 8 419 435 419 203
250 10 457 473 457 254
300 12 502 518 502 305
350 14 762 778 762 337
400 16 838 854 838 387
450 18 914 930 914 438
500 20 991 1010 991 489
600 24 1143 1165 1143 591
