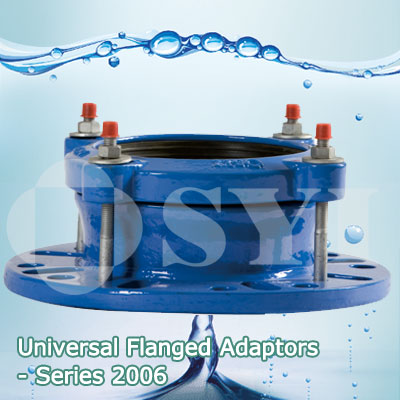

Universal Flanged Adaptors – Series 2006

Universal Flanged Adaptors – Series 200



SYI is keeping on designing the series of Universal-Flanged-Adaptors---Series-2006-SYI-Pipelinecoupling products for pursuing the better performance and easier operation.

New design and patterns could be developed based on customers’requirement.

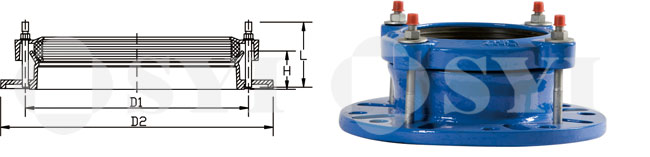

SYI Series No. DN Pipe O.D. range D2 H L
mm inch mm mm mm mm
FA3-50-1 40 2” 47-60 165 75 190
FA3-50-2 50 2” 57-73 194 85 210
FA3-65-1 65 2 1/2” 68-85 207 85 210
FA3-80-1 80 3” 84-106 224 85 210
FA3-100-1 100 4” 103-116 250 85 210
FA3-100-2 100 4” 108-130 250 85 230
FA3-125-1 125 5” 128-146 286 85 210
FA3-125-2 125 5” 134-155 286 85 230
FA3-150-1 150 6” 153-175 340 85 210
FA3-150-2 150 6” 165-185 340 85 230
FA3-200-1 200 8” 184-207 342 100 260
FA3-200-2 200 8” 208-225 348 100 260
FA3-200-3 200 8” 218-236 348 100 260
FA3-250-1 250 10” 264-284 406 100 260
FA3-300-1 300 12” 315-335 482 110 300
FA3-350-1 350 14” 360-386 533 100 300
FA3-400-1 400 16” 408-435 596 100 300
Category:

Description

Universal Flanged Adaptors – Series 2006

SPECIFICATIONS
Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1

HEX BOLTS AND NUTS: Carbon steel grade 6.8 with galvanization
Flange:
Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Allowed Angular Deflection:
3°
Joint Gap:
19mm
Coating:
External coatings Internall coatings

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements

liquid epoxy resin painting
epoxy applied by FBE
according to customers’ requirements
Reference Rules:
Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:

Universal Flanged Adaptors Series 3, developed in 2007, with wide range tolerance on O.D., are suitable for jointing the flanged joint products to the plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges, and the multi-drilling flanges further simplify installation.The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
Note: The accessories for SYI Universal Flanged Adaptors are usually supplied by assembled on the body.
