Description

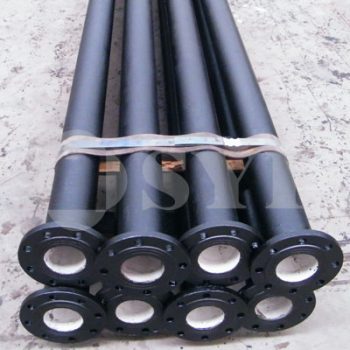

Flanged Pipe with Cast-on or Screwed-on or Weld-on Flange
Dimensions of flanges are in conformity with ISO7005-2 and EN1092-2.
| DN | Iron Wall Thickness e |
||
| K9 | K12 | K14 | |
| 80 | 6 | 7 | 8.1 |
| 100 | 6 | 7.2 | 8.4 |
| 125 | 6 | 7.5 | 8.8 |
| 150 | 6 | 7.8 | 9.1 |
| 200 | 6.3 | 8.4 | 9.8 |
| 250 | 6.8 | 9 | 10.5 |
| 300 | 7.2 | 9.6 | 11.2 |
| 350 | 7.7 | 10.2 | 11.9 |
| 400 | 8.1 | 10.8 | 12.6 |
| 450 | 8.6 | 11.4 | 13.3 |
| 500 | 9 | 12 | 14 |
| 600 | 9.9 | 13.2 | 15.4 |
| 700 | 10.8 | 14.4 | 16.8 |
| 800 | 11.7 | 15.6 | 18.2 |
| 900 | 12.6 | 16.8 | 19.6 |
| 1000 | 13.5 | 18 | 21 |
| 1100 | 14.4 | 19.2 | 22.4 |
| 1200 | 15.3 | 20.4 | 23.8 |
| 1400 | 17.1 | 22.8 | 26.6 |
| 1500 | 18 | 24 | 28 |
| 1600 | 18.9 | 25.2 | 29.4 |
| 1800 | 20.7 | 27.6 | 32.2 |
| 2000 | 22.5 | 30 | 35 |
| 2100 | 31.2 | 36.4 | |
| 2200 | 24.3 | 32.4 | 37.8 |
| 2400 | 26.1 | 34.8 | 40.6 |
| 2600 | 27.9 | 37.2 | 43.4 |
