Fittings For PVC Pipes

FITTINGS FOR PVC PIPES

EN12842

Dimension of Socket for PVC Pipes

DN OD A B D T
40 50 50.8+0.6 65.8+0.7 53 6
50 63 63.8+0.7 80.2+0.8 66 6.2
60 75 75.8+0.7 94.1+0.8 79 6.5
80 90 90.9+0.8 110.9+0.8 94 6.8
100 110 111+0.9 132.7+0.9 114 7
125 125 126+1 149+1 129 7.2
125 140 141+1 165+1 144 7.5
150 160 161.2+1.1 186.2+1.1 164 7.8
180 181.3+1.1 207.1+1.2 185 8
200 200 201.4+1.1 227.8+1.2 205 8
200 225 226.5+1.1 255.4+1.3 230 8.2
250 250 251.7+1.1 282.8+1.4 256 8.5
280 281.8+1.2 314.5+1.5 286 8.5
300 315 317+1.2 351.5+1.6 321 9
350 355 357.2+1.3 394+1.7 363 9.6
400 400 402.5+1.4 441.8+1.8 409 10

Dimensions in mm.

Category:

Description

ISO 2531 / EN 545 / EN 598 / GB 13295

Specifications

Fittings For PVC Pipes

 Material
 FITTING : Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083

GASKET: Rubber E.P.D.M. / NBR / SBR in accordance with EN 681.1
 Flange
 16 Bar or 250 PSI
 Fluid Temperature
 0°C-50°C, excluding frost
 Coating
  External coatings   Internal coatings
  zinc + bitumen painting
  liquid epoxy resin painting
  epoxy applied by FBE
  according to customers’ requirements		   cement mortar lining
  liquid epoxy resin painting
  epoxy applied by FBE
  according to customers’ requirements
 Reference Rules
 Dimensions and testing in accordance with ISO 2531 / EN 545 and EN 12842
 Use
  Used for jointing the PVC pipes. Fittings can be assembled by pushing the
  spigot through the gasket in the socket of the mating component.

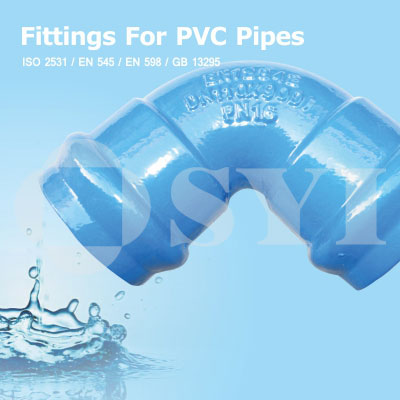

Fittings-For-PVC-Pipes-SYI-Pipeline001

Note:The gaskets, bolts & nuts are supplied separately with the fittings usually.
